Examples

To show how to use the package in more detail we show how to use the recipes to replicate the original plates by DuBois.

using DuBoisPlots

Plate 7

p = Plate7(DuBoisData.Plate7, :Year;
        title="Comparative Increase of White and Colored \n Population of Georgia",
        xlabel = "Percent")

Original	Replication

Plate 10

p =Plate10(DuBoisData.Plate10,:Age,:Population, 3:5,
        ["15-55", "45-65", "65+"],
        ["Germany", "United States"],
        ["Single", "Divorced", "Married"],"Conjugal Condition")

Original	Replication

Plate 11

p = Plate11(DuBoisData.Plate11,:Population,
        [-0.0,0.12], [0.09,0.1], [0.025,0.075], [0.03,-0.09], [0.035,-0.035],
        "no", "City and Rural Population \n 1890.",
        " negroes in cities \n of over 10,000 inhabitants",
        " negroes in cities \n from 5,000 to 10,000",
        " \n negroes \n in cities \n from \n 2,500 to 5,000",
        " Negroes living in the country and villages")

Original	Replication

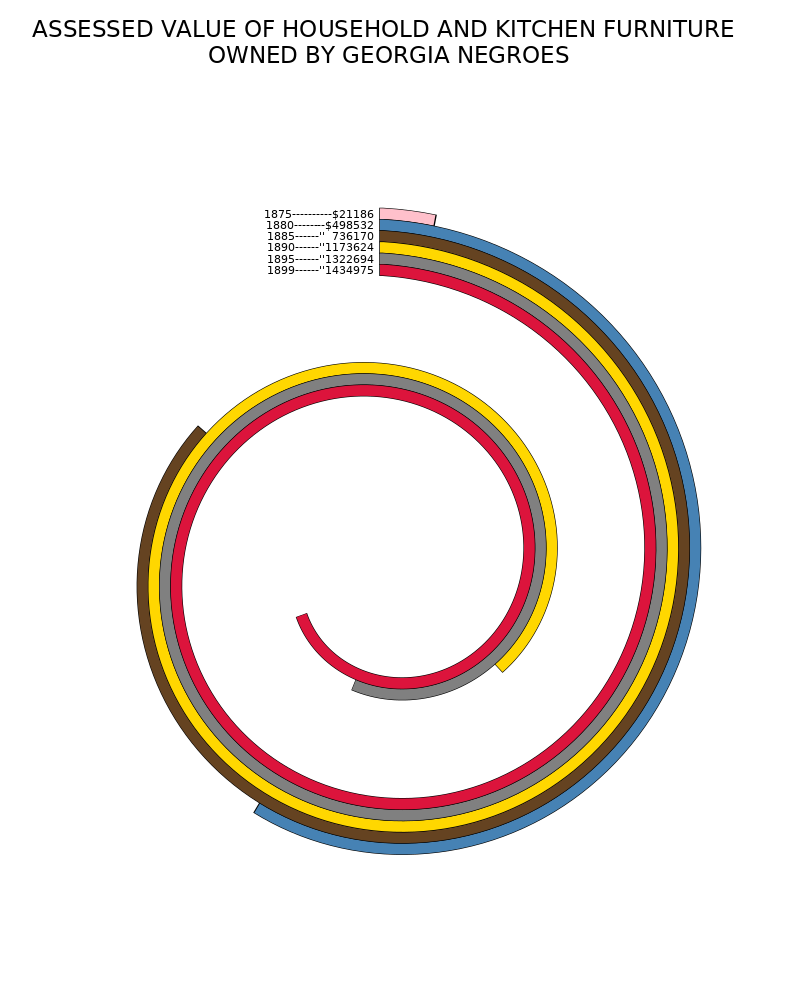

Plate 25

p = Plate25(DuBoisData.Plate25,:Year,:Value,
        "Assessed value of household and kitchen furniture \n owned by Georgia negroes")

Original	Replication

Plate 51

p = Plate51(DuBoisData.Plate51, :Year;
        title="Proportion of Freemen and Salves Among American Negroes.",
        small_title="Proportion des Negres Libres et des Esclaves en Amerique",
        subtitle="Reproduced by DuBoisPlots.jl")

Original	Replication

Plate 53

p = Plate53(DuBoisData.Plate53,:Ages,:Gender,
        [:Single, :Married, :Widowed],[45 1.2; 55 4.7; 93 8.], [25 2; 45 5.5; 65 8.],
        title_1 = "Conjugal condition of American Negroes according to age periods.",
        title_2 = "Condition conjugale des Negres Americains au point de vue de l' age.",
        subtitle = "Done by Atlanta University.", bot_lab = "PER CENTS.")

Original	Replication
