DuBoisPlots

The package exports functions PlateX(df::DataFrame,args;OptionalArgs) that are used to replicate a specific plate. In addition, it also exports all the original data in DuBoisData.PlateX.

The Examples page displays the set of currently included plates and side-by-side comparisons to the original plates.

To recreate Plates 11 and 51 you would do

using DuBoisPlots
p11 = Plate11(DuBoisData.Plate11,:Population,[-0.0,0.12], [0.09,0.1], [0.025,0.075], [0.03,-0.09], [0.035,-0.035],
    "no", "City and Rural Population \n 1890.", " negroes in cities \n of over 10,000 inhabitants",
    " negroes in cities \n from 5,000 to 10,000", " \n negroes \n in cities \n from \n 2,500 to 5,000",
    " Negroes living in the country and villages")

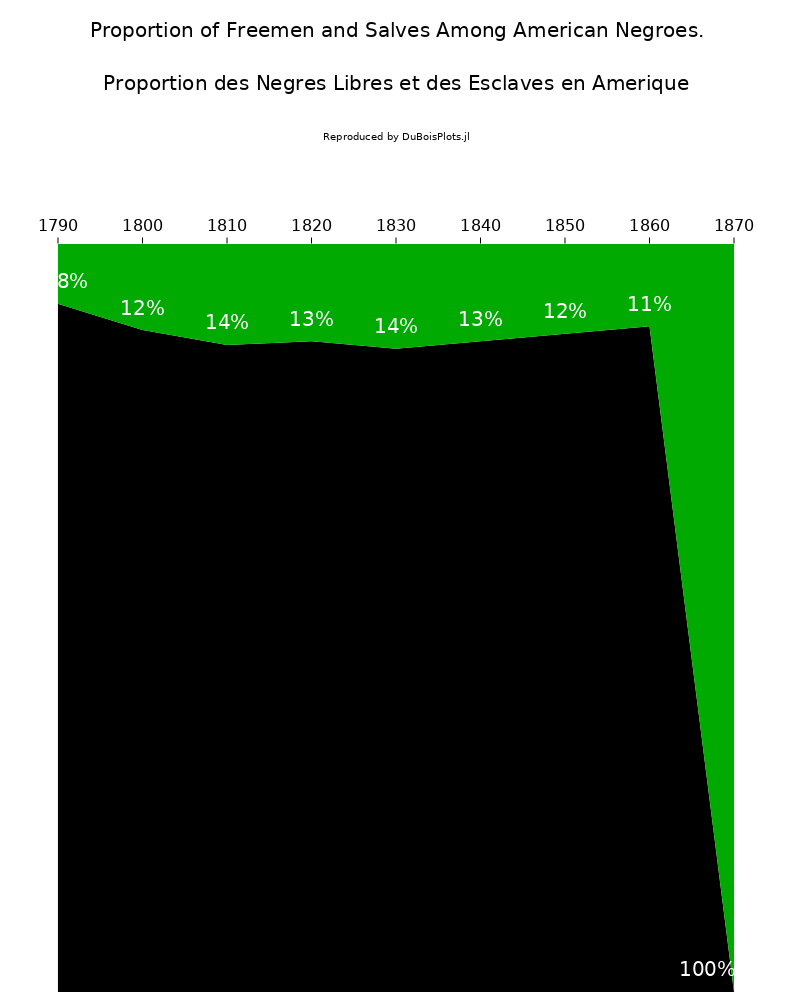

p51 = Plate51(DuBoisData.Plate51, :Year;
        title="Proportion of Freemen and Salves Among American Negroes.",
        small_title="Proportion des Negres Libres et des Esclaves en Amerique",
        subtitle="Reproduced by DuBoisPlots.jl")

Plate 11	Plate 51
